- Usage: Commercial Manufacture
- Wattage: 2000-3999W
- Weight: 15KG
- Max. Cutting Depth: 110mm
- Blade Diameter: 14 inch
- No-Load Speed: 5000rpm
- Application: Tile Saw
- Rated Voltage: 110V
- Model Number: 1GY180003-US
- Power Source: AC
- Saw Type: Circular Saw
- Brand Name: Amonstar
- Origin: Mainland China
- Certification: CE
Easily cuts Concrete, Stone, Brick, and Paving, even reinforced concrete. The powerful 3200W motor makes easy work of the most robust materials and because it is electric there are no harmful fumes, making it ideal for work in enclosed areas. The ergonomic support handles are ideally positioned for perfect balance when cutting and the spindle lock mechanism means blade replacement is quick and simple.
Features:
-
The material of the power cord is rubber, which is easy to be corrosion-resistant and wear-resistant.
-
Safety protection: designed with leakage protector, wading work is safer.
-
Leakage protector: Designed with a test button and a reset button, which can judge whether the protector is normal.
-
Auxiliary wheels: Two auxiliary wheels are designed to save effort during work.
-
Self-locking function: with self-locking function, you need to press the self-locking switch to start the switch.
-
Saw blade brake: designed with a saw blade brake button (press to brake the saw blade to facilitate the removal and replacement of the saw blade).
-
Water volume control: equipped with water inlet control switch (adjustable flow).
Specifications:
-
Voltage: 110V/60HZ
-
Plug: 3-pin standard US plug
-
Color: yellow and black
-
Material: all metal working area/engine shell engineering plastic
-
Power input: 3200W
-
No-load speed: 5000 rpm
-
Suitable blade diameter: 14 inches (Φ355 mm)
-
Tool bar size: 1 inch (Φ25.4 mm)
-
Gift: 14-inch diamond cutting saw blade
-
Saw blade material: cut part of diamond (suitable for cutting concrete, stone, etc.)
-
Dust removal methods: two types (water can be used for dust removal / vacuum cleaner can be connected for dust removal)
-
Power cord length: 2.1m
-
Power cord material: rubber (corrosion and wear resistance)
-
Safety protection: designed with leakage protector (wading work is safer)
-
Leakage protector: designed with test button and reset button (can judge whether the protector is normal)
-
Working power requirements: ground wire connection is required during operation
-
Blade turning: forward
-
Auxiliary wheels: Designed with two auxiliary wheels (saving work)
-
Saw blade replacement: other styles of saw blades can be replaced according to the use scene
-
Cutting depth: 0-110mm adjustable (equipped with depth control board/need to install)
-
Body and saw blade attitude: adjustable
-

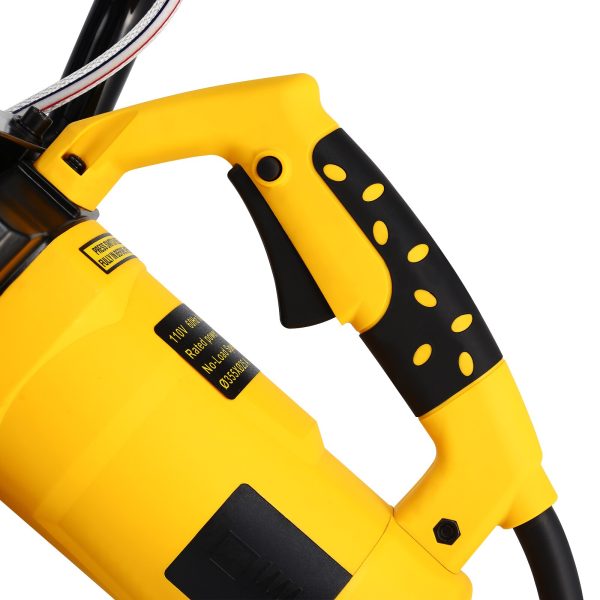

Handle: metal handle wrapped in flexible rubber (strong and good feel)
-
Handle: Engineering plastic and rubber handle
-
Protective cover: metal protective cover
-
Water pipe: five meters long pvc hose (inner diameter 5mm)
-
Motor material: all copper core (long life) Motor category: brush motor (two carbon brushes)
-
Carbon brush specification: 21*7*H21mm (professionals generally need to replace the carbon brush)
-
Self-locking function: with self-locking function (need to press the self-locking switch to press the lower start switch)
-
Saw blade brake: designed with a saw blade brake button (press to brake the saw blade to facilitate the removal and replacement of the saw blade)
-
Water volume control: equipped with water inlet control switch (adjustable flow)
-
Water pump: free mini water pump
-
Pump parameters: input AC110-240V/line length 1.5M/with switch/flow 6L minutes
-
Packing: Inner molded foam wrap
-

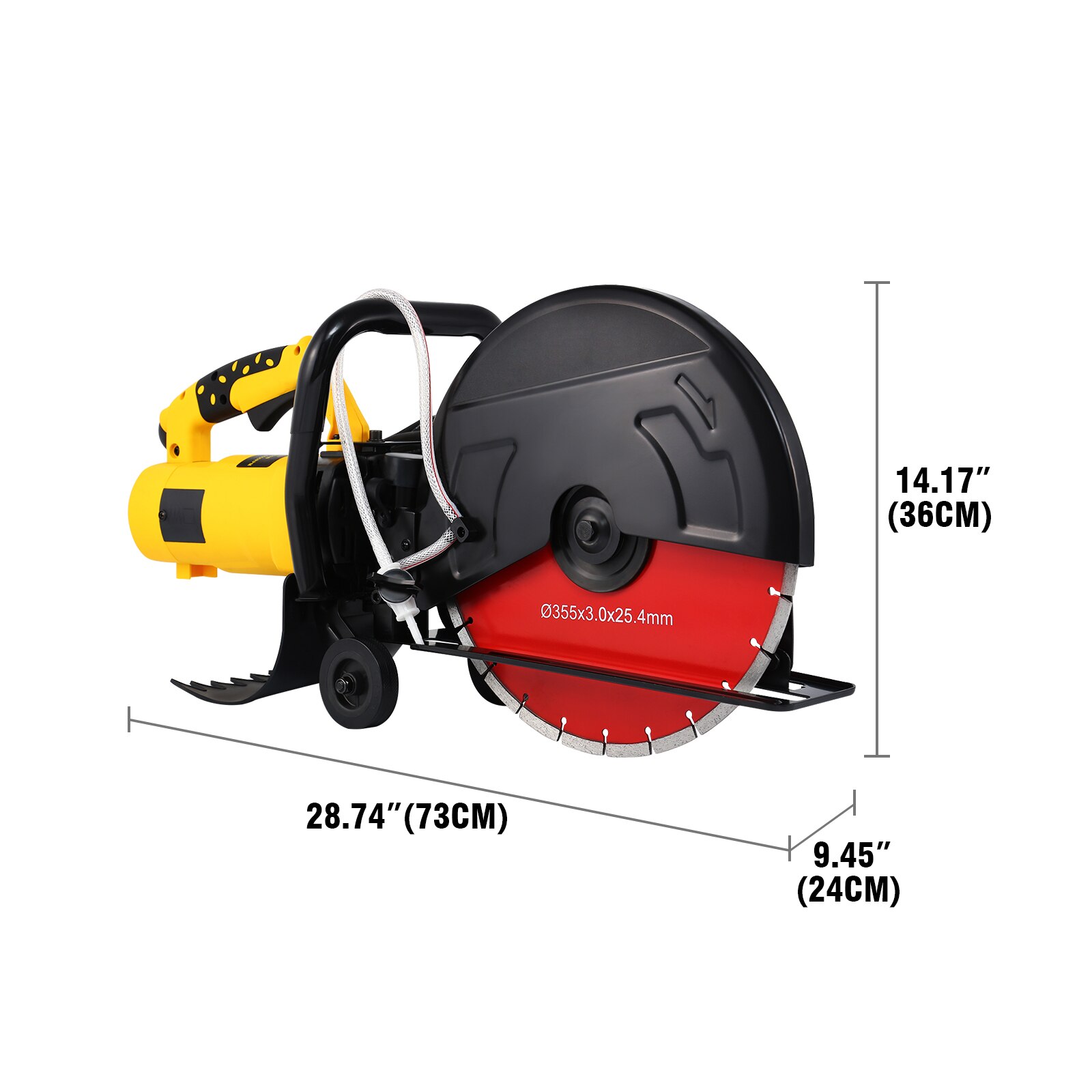

Machine size: 80*23*35cm
-
Net weight: 15kg
Package Includes:
-
Machine *1
-
Saw blade*1
-
Manual *1
-
Water pump*1 (random color)
-
Hose*1
-
Vacuum cleaner soft interface*1
-
Saw blade removal wrench*1
-
Carbon brush*2
|
